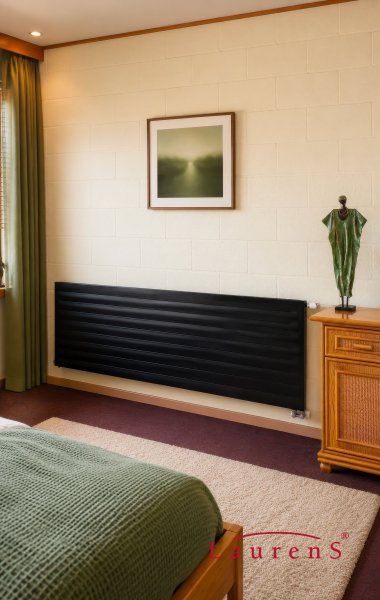

Hyacint Horizontal
Designradiatoren en woonkamer radiatoren

1/9

Overzicht

Materiaalstaal
Max. werkdruk5 bar
Max. bedrijfstemperatuur90 °C
Horizontale uitvoeringja
Toepassing - Puur voor CV (alleen water)
Levertijd4-8 weken
Maatwerk nee

Kleur (Standard)

Verkeerswit
RAL 9016

Aansluiting (Standard)

Aanvoer links boven
Aanvoer rechts boven
Aanvoer links boven
Aanvoer rechts boven

Hyacint Horizontal
Prijslijst van: 29. 03. 2024

2/9

Muurmodellen

Code B x H x D
[mm]
Q [W]
(75/65/20°C)
Aansluitmaat
[mm]
Inhoud
[l]
Gewicht
[kg]
Prijs
(ex. BTW)
H1H-0400/280 400 x 280 x 74 135 230 1.4 4.6 450 €
H1H-0400/420 400 x 420 x 74 192 370 2.1 7.1 508 €
H1H-0400/560 400 x 560 x 74 247 510 2.8 9.4 559 €
H1H-0400/700 400 x 700 x 74 300 650 3.5 11.9 617 €
H1H-0500/280 500 x 280 x 74 169 230 1.6 5.5 458 €
H1H-0500/420 500 x 420 x 74 240 370 2.4 8.5 530 €
H1H-0500/560 500 x 560 x 74 309 510 3.2 11.3 581 €
H1H-0500/700 500 x 700 x 74 374 650 4 14.2 639 €
H1H-0600/280 600 x 280 x 74 203 230 1.8 6.5 472 €
H1H-0600/420 600 x 420 x 74 289 370 2.7 9.9 552 €
H1H-0600/560 600 x 560 x 74 370 510 3.6 13.1 609 €
H1H-0600/700 600 x 700 x 74 449 650 4.5 16.6 668 €
H1H-0700/280 700 x 280 x 74 237 230 2 7.4 486 €
H1H-0700/420 700 x 420 x 74 337 370 3 11.3 567 €
H1H-0700/560 700 x 560 x 74 432 510 4 15 631 €
H1H-0700/700 700 x 700 x 74 524 650 5 18.9 697 €
H1H-0800/280 800 x 280 x 74 271 230 2.2 8.3 494 €
H1H-0800/420 800 x 420 x 74 385 370 3.3 12.7 581 €
H1H-0800/560 800 x 560 x 74 494 510 4.4 16.8 653 €
H1H-0800/700 800 x 700 x 74 599 650 5.4 21.2 726 €
H1H-0900/280 900 x 280 x 74 305 230 2.4 9.2 508 €
H1H-0900/420 900 x 420 x 74 433 370 3.6 14.1 603 €
H1H-0900/560 900 x 560 x 74 555 510 4.7 18.7 682 €
H1H-0900/700 900 x 700 x 74 674 650 5.9 23.5 748 €
H1H-1000/280 1000 x 280 x 74 338 230 2.6 10.2 530 €

URL adres: https://laurens-radiatoren.be/hyacint-horizontal-nl-be
Technische Fiche: https://laurens-radiatoren.be/download/cs/tech/hyacinth-cs.pdf
Montage- und Befestigungsanleitung: https://laurens-radiatoren.be/download/tech/hyacint_mounting-instructions.pdf

Hyacint Horizontal
Prijslijst van: 29. 03. 2024

3/9

Muurmodellen

Code B x H x D
[mm]
Q [W]
(75/65/20°C)
Aansluitmaat
[mm]
Inhoud
[l]
Gewicht
[kg]
Prijs
(ex. BTW)
H1H-1000/420 1000 x 420 x 74 481 370 3.9 15.5 617 €
H1H-1000/560 1000 x 560 x 74 617 510 5.1 20.5 704 €
H1H-1000/700 1000 x 700 x 74 749 650 6.4 25.8 784 €
H1H-1100/280 1100 x 280 x 74 372 230 2.8 11.1 545 €
H1H-1100/420 1100 x 420 x 74 529 370 4.1 16.8 639 €
H1H-1100/560 1100 x 560 x 74 679 510 5.5 22.4 726 €
H1H-1100/700 1100 x 700 x 74 824 650 6.9 28.1 806 €
H1H-1200/280 1200 x 280 x 74 406 230 3 12 552 €
H1H-1200/420 1200 x 420 x 74 577 370 4.4 18.2 653 €
H1H-1200/560 1200 x 560 x 74 741 510 5.9 24.3 784 €
H1H-1200/700 1200 x 700 x 74 899 650 7.4 30.5 871 €
H1H-1300/280 1300 x 280 x 74 440 230 3.2 13 609 €
H1H-1300/420 1300 x 420 x 74 625 370 4.7 19.6 718 €
H1H-1300/560 1300 x 560 x 74 802 510 6.3 26.1 813 €
H1H-1300/700 1300 x 700 x 74 974 650 7.9 32.8 900 €
H1H-1400/280 1400 x 280 x 74 474 230 3.3 13.9 581 €
H1H-1400/420 1400 x 420 x 74 673 370 5 21 697 €
H1H-1400/560 1400 x 560 x 74 864 510 6.7 28 827 €
H1H-1400/700 1400 x 700 x 74 1048 650 8.4 35.1 930 €
H1H-1500/280 1500 x 280 x 74 508 230 3.5 14.8 603 €
H1H-1500/420 1500 x 420 x 74 721 370 5.3 22.4 712 €
H1H-1500/560 1500 x 560 x 74 926 510 7.1 29.8 857 €
H1H-1500/700 1500 x 700 x 74 1123 650 8.9 37.4 958 €
H1H-1600/280 1600 x 280 x 74 541 230 3.7 15.7 609 €
H1H-1600/420 1600 x 420 x 74 769 370 5.6 23.8 770 €

URL adres: https://laurens-radiatoren.be/hyacint-horizontal-nl-be
Technische Fiche: https://laurens-radiatoren.be/download/cs/tech/hyacinth-cs.pdf
Montage- und Befestigungsanleitung: https://laurens-radiatoren.be/download/tech/hyacint_mounting-instructions.pdf

Hyacint Horizontal
Prijslijst van: 29. 03. 2024

4/9

Muurmodellen

Code B x H x D
[mm]
Q [W]
(75/65/20°C)
Aansluitmaat
[mm]
Inhoud
[l]
Gewicht
[kg]
Prijs
(ex. BTW)
H1H-1600/560 1600 x 560 x 74 987 510 7.5 31.7 879 €
H1H-1600/700 1600 x 700 x 74 1198 650 9.4 39.7 980 €
H1H-1700/280 1700 x 280 x 74 575 230 3.9 16.7 625 €
H1H-1700/420 1700 x 420 x 74 818 370 5.9 25.2 791 €
H1H-1700/560 1700 x 560 x 74 1049 510 7.9 33.5 900 €
H1H-1700/700 1700 x 700 x 74 1273 650 9.9 42 1.009 €
H1H-1800/280 1800 x 280 x 74 609 230 4.1 17.6 639 €
H1H-1800/420 1800 x 420 x 74 866 370 6.2 26.6 806 €
H1H-1800/560 1800 x 560 x 74 1111 510 8.3 35.4 930 €
H1H-1800/700 1800 x 700 x 74 1348 650 10.4 44.4 1.038 €
H1H-1900/280 1900 x 280 x 74 643 230 4.3 18.5 697 €
H1H-1900/420 1900 x 420 x 74 914 370 6.5 28 821 €
H1H-1900/560 1900 x 560 x 74 1173 510 8.7 37.2 952 €
H1H-1900/700 1900 x 700 x 74 1423 650 10.8 46.7 1.060 €
H1H-2000/280 2000 x 280 x 74 677 230 4.5 19.4 712 €
H1H-2000/420 2000 x 420 x 74 962 370 6.8 29.3 849 €
H1H-2000/560 2000 x 560 x 74 1234 510 9.1 39.1 972 €
H1H-2000/700 2000 x 700 x 74 1498 650 11.3 49 1.097 €
H1H-2200/280 2200 x 280 x 74 744 230 4.9 21.3 740 €
H1H-2200/420 2200 x 420 x 74 1058 370 7.4 32.1 886 €
H1H-2200/560 2200 x 560 x 74 1358 510 9.8 42.8 1.031 €
H1H-2200/700 2200 x 700 x 74 1648 650 12.3 53.6 1.147 €
H1H-2400/280 2400 x 280 x 74 812 230 5.3 23.1 777 €
H1H-2400/420 2400 x 420 x 74 1154 370 8 34.9 922 €
H1H-2400/560 2400 x 560 x 74 1481 510 10.6 46.5 1.081 €

URL adres: https://laurens-radiatoren.be/hyacint-horizontal-nl-be
Technische Fiche: https://laurens-radiatoren.be/download/cs/tech/hyacinth-cs.pdf
Montage- und Befestigungsanleitung: https://laurens-radiatoren.be/download/tech/hyacint_mounting-instructions.pdf

Hyacint Horizontal
Prijslijst van: 29. 03. 2024

5/9

Muurmodellen

Code B x H x D
[mm]
Q [W]
(75/65/20°C)
Aansluitmaat
[mm]
Inhoud
[l]
Gewicht
[kg]
Prijs
(ex. BTW)
H1H-2400/700 2400 x 700 x 74 1797 650 13.3 58.3 1.206 €
H1H-2600/280 2600 x 280 x 74 880 230 5.7 25 799 €
H1H-2600/420 2600 x 420 x 74 1250 370 8.6 37.7 958 €
H1H-2600/560 2600 x 560 x 74 1605 510 11.4 50.2 1.118 €
H1H-2600/700 2600 x 700 x 74 1947 650 14.3 62.9 1.263 €
H1H-2800/280 2800 x 280 x 74 947 230 6.1 26.9 827 €
H1H-2800/420 2800 x 420 x 74 1346 370 9.1 40.5 1.002 €
H1H-2800/560 2800 x 560 x 74 1728 510 12.2 53.9 1.169 €
H1H-2800/700 2800 x 700 x 74 2097 650 15.3 67.5 1.321 €
H1H-3000/280 3000 x 280 x 74 1015 230 6.5 28.7 857 €
H1H-3000/420 3000 x 420 x 74 1443 370 9.7 43.2 1.031 €
H1H-3000/560 3000 x 560 x 74 1851 510 13 57.6 1.212 €
H1H-3000/700 3000 x 700 x 74 2247 650 16.2 72.1 1.365 €
H2H-0400/280 400 x 280 x 112 214 230 2.3 8.4 661 €
H2H-0400/420 400 x 420 x 112 306 370 3.5 12.6 718 €
H2H-0400/560 400 x 560 x 112 394 510 4.6 16.8 821 €
H2H-0400/700 400 x 700 x 112 481 650 5.8 21.1 930 €
H2H-0500/280 500 x 280 x 112 265 230 2.7 10.3 690 €
H2H-0500/420 500 x 420 x 112 379 370 4 15.4 748 €
H2H-0500/560 500 x 560 x 112 489 510 5.4 20.5 864 €
H2H-0500/700 500 x 700 x 112 596 650 6.7 25.7 980 €
H2H-0600/280 600 x 280 x 112 316 230 3.1 12.1 712 €
H2H-0600/420 600 x 420 x 112 453 370 4.6 18.2 777 €
H2H-0600/560 600 x 560 x 112 584 510 6.2 24.3 900 €
H2H-0600/700 600 x 700 x 112 712 650 7.7 30.3 1.031 €

URL adres: https://laurens-radiatoren.be/hyacint-horizontal-nl-be
Technische Fiche: https://laurens-radiatoren.be/download/cs/tech/hyacinth-cs.pdf
Montage- und Befestigungsanleitung: https://laurens-radiatoren.be/download/tech/hyacint_mounting-instructions.pdf

Hyacint Horizontal
Prijslijst van: 29. 03. 2024

6/9

Muurmodellen

Code B x H x D
[mm]
Q [W]
(75/65/20°C)
Aansluitmaat
[mm]
Inhoud
[l]
Gewicht
[kg]
Prijs
(ex. BTW)
H2H-0700/280 700 x 280 x 112 368 230 3.5 14 734 €
H2H-0700/420 700 x 420 x 112 526 370 5.2 21 806 €
H2H-0700/560 700 x 560 x 112 679 510 7 28 944 €
H2H-0700/700 700 x 700 x 112 827 650 8.7 34.9 1.081 €
H2H-0800/280 800 x 280 x 112 419 230 3.9 15.8 762 €
H2H-0800/420 800 x 420 x 112 600 370 5.8 23.7 843 €
H2H-0800/560 800 x 560 x 112 774 510 7.7 31.7 972 €
H2H-0800/700 800 x 700 x 112 943 650 9.7 39.6 1.125 €
H2H-0900/280 900 x 280 x 112 471 230 4.3 17.7 777 €
H2H-0900/420 900 x 420 x 112 674 370 6.4 26.5 871 €
H2H-0900/560 900 x 560 x 112 869 510 8.5 35.4 1.016 €
H2H-0900/700 900 x 700 x 112 1059 650 10.7 44.2 1.176 €
H2H-1000/280 1000 x 280 x 112 522 230 4.7 19.5 799 €
H2H-1000/420 1000 x 420 x 112 747 370 7 29.3 900 €
H2H-1000/560 1000 x 560 x 112 964 510 9.3 39.1 1.053 €
H2H-1000/700 1000 x 700 x 112 1174 650 11.7 48.8 1.220 €
H2H-1100/280 1100 x 280 x 112 573 230 5 21.4 821 €
H2H-1100/420 1100 x 420 x 112 821 370 7.6 32.1 936 €
H2H-1100/560 1100 x 560 x 112 1059 510 10.1 42.8 1.097 €
H2H-1100/700 1100 x 700 x 112 1290 650 12.6 53.5 1.271 €
H2H-1200/280 1200 x 280 x 112 625 230 5.4 23.2 849 €
H2H-1200/420 1200 x 420 x 112 894 370 8.2 34.9 966 €
H2H-1200/560 1200 x 560 x 112 1154 510 10.9 46.5 1.133 €
H2H-1200/700 1200 x 700 x 112 1406 650 13.6 58.1 1.321 €
H2H-1300/280 1300 x 280 x 112 676 230 5.8 25.1 864 €

URL adres: https://laurens-radiatoren.be/hyacint-horizontal-nl-be
Technische Fiche: https://laurens-radiatoren.be/download/cs/tech/hyacinth-cs.pdf
Montage- und Befestigungsanleitung: https://laurens-radiatoren.be/download/tech/hyacint_mounting-instructions.pdf

Hyacint Horizontal
Prijslijst van: 29. 03. 2024

7/9

Muurmodellen

Code B x H x D
[mm]
Q [W]
(75/65/20°C)
Aansluitmaat
[mm]
Inhoud
[l]
Gewicht
[kg]
Prijs
(ex. BTW)
H2H-1300/420 1300 x 420 x 112 968 370 8.8 37.6 988 €
H2H-1300/560 1300 x 560 x 112 1249 510 11.7 50.2 1.176 €
H2H-1300/700 1300 x 700 x 112 1521 650 14.6 62.7 1.365 €
H2H-1400/280 1400 x 280 x 112 727 230 6.2 26.9 886 €
H2H-1400/420 1400 x 420 x 112 1042 370 9.3 40.4 1.024 €
H2H-1400/560 1400 x 560 x 112 1344 510 12.5 53.9 1.212 €
H2H-1400/700 1400 x 700 x 112 1637 650 15.6 67.4 1.416 €
H2H-1500/280 1500 x 280 x 112 779 230 6.6 28.8 908 €
H2H-1500/420 1500 x 420 x 112 1115 370 9.9 43.2 1.053 €
H2H-1500/560 1500 x 560 x 112 1438 510 13.2 57.6 1.256 €
H2H-1500/700 1500 x 700 x 112 1753 650 16.6 72 1.460 €
H2H-1600/280 1600 x 280 x 112 830 230 7 30.7 936 €
H2H-1600/420 1600 x 420 x 112 1189 370 10.5 46 1.089 €
H2H-1600/560 1600 x 560 x 112 1533 510 14 61.3 1.293 €
H2H-1600/700 1600 x 700 x 112 1868 650 17.5 76.6 1.517 €
H2H-1700/280 1700 x 280 x 112 882 230 7.4 32.5 958 €
H2H-1700/420 1700 x 420 x 112 1262 370 11.1 48.8 1.118 €
H2H-1700/560 1700 x 560 x 112 1628 510 14.8 65 1.335 €
H2H-1700/700 1700 x 700 x 112 1984 650 18.5 81.3 1.569 €
H2H-1800/280 1800 x 280 x 112 933 230 7.8 34.4 972 €
H2H-1800/420 1800 x 420 x 112 1336 370 11.7 51.5 1.147 €
H2H-1800/560 1800 x 560 x 112 1723 510 15.6 68.7 1.372 €
H2H-1800/700 1800 x 700 x 112 2100 650 19.5 85.9 1.612 €
H2H-1900/280 1900 x 280 x 112 984 230 8.2 36.2 1.002 €
H2H-1900/420 1900 x 420 x 112 1409 370 12.3 54.3 1.176 €

URL adres: https://laurens-radiatoren.be/hyacint-horizontal-nl-be
Technische Fiche: https://laurens-radiatoren.be/download/cs/tech/hyacinth-cs.pdf
Montage- und Befestigungsanleitung: https://laurens-radiatoren.be/download/tech/hyacint_mounting-instructions.pdf

Hyacint Horizontal
Prijslijst van: 29. 03. 2024

8/9

Muurmodellen

Code B x H x D
[mm]
Q [W]
(75/65/20°C)
Aansluitmaat
[mm]
Inhoud
[l]
Gewicht
[kg]
Prijs
(ex. BTW)
H2H-1900/560 1900 x 560 x 112 1818 510 16.4 72.4 1.416 €
H2H-1900/700 1900 x 700 x 112 2215 650 20.5 90.5 1.662 €
H2H-2000/280 2000 x 280 x 112 1036 230 8.6 38.1 1.024 €
H2H-2000/420 2000 x 420 x 112 1483 370 12.9 57.1 1.206 €
H2H-2000/560 2000 x 560 x 112 1913 510 17.2 76.1 1.444 €
H2H-2000/700 2000 x 700 x 112 2331 650 21.5 95.1 1.706 €
H2H-2200/280 2200 x 280 x 112 1139 230 9.4 41.8 1.081 €
H2H-2200/420 2200 x 420 x 112 1630 370 14 62.6 1.278 €
H2H-2200/560 2200 x 560 x 112 2103 510 18.7 83.5 1.532 €
H2H-2200/700 2200 x 700 x 112 2562 650 23.4 104.4 1.815 €
H2H-2400/280 2400 x 280 x 112 1241 230 10.1 45.5 1.118 €
H2H-2400/420 2400 x 420 x 112 1777 370 15.2 68.2 1.335 €
H2H-2400/560 2400 x 560 x 112 2293 510 20.3 90.9 1.612 €
H2H-2400/700 2400 x 700 x 112 2793 650 25.4 113.7 1.910 €
H2H-2600/280 2600 x 280 x 112 1344 230 10.9 49.2 1.169 €
H2H-2600/420 2600 x 420 x 112 1924 370 16.4 73.8 1.401 €
H2H-2600/560 2600 x 560 x 112 2483 510 21.9 98.3 1.692 €
H2H-2600/700 2600 x 700 x 112 3025 650 27.3 122.9 2.004 €
H2H-2800/280 2800 x 280 x 112 1447 230 11.7 52.9 1.212 €
H2H-2800/420 2800 x 420 x 112 2072 370 17.6 79.3 1.460 €
H2H-2800/560 2800 x 560 x 112 2672 510 23.4 105.7 1.771 €
H2H-2800/700 2800 x 700 x 112 3256 650 29.3 132.2 2.098 €
H2H-3000/280 3000 x 280 x 112 1550 230 12.5 56.6 1.256 €
H2H-3000/420 3000 x 420 x 112 2219 370 18.8 84.9 1.517 €
H2H-3000/560 3000 x 560 x 112 2862 510 25 113.2 1.844 €

URL adres: https://laurens-radiatoren.be/hyacint-horizontal-nl-be
Technische Fiche: https://laurens-radiatoren.be/download/cs/tech/hyacinth-cs.pdf
Montage- und Befestigungsanleitung: https://laurens-radiatoren.be/download/tech/hyacint_mounting-instructions.pdf

Hyacint Horizontal
Prijslijst van: 29. 03. 2024

9/9

Muurmodellen

Code B x H x D
[mm]
Q [W]
(75/65/20°C)
Aansluitmaat
[mm]
Inhoud
[l]
Gewicht
[kg]
Prijs
(ex. BTW)
H2H-3000/700 3000 x 700 x 112 3487 650 31.3 141.4 2.207 €

URL adres: https://laurens-radiatoren.be/hyacint-horizontal-nl-be
Technische Fiche: https://laurens-radiatoren.be/download/cs/tech/hyacinth-cs.pdf
Montage- und Befestigungsanleitung: https://laurens-radiatoren.be/download/tech/hyacint_mounting-instructions.pdf
